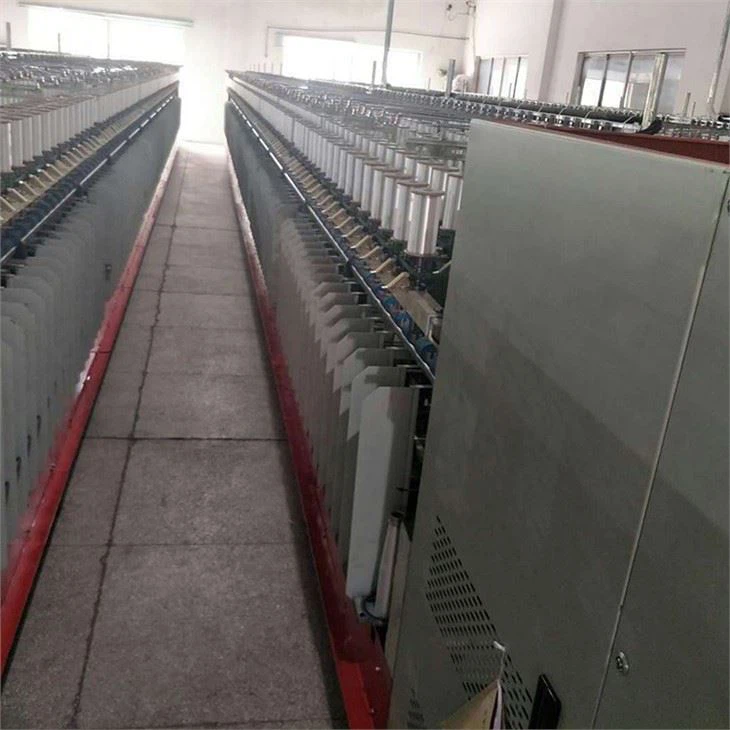

Filament Embroidery Thread Ring Twist Machine
filament embroidery thread ring twist machine
Using one-step twisting process of the upper fist twist, assembling, lower after twist is a big advantage of filament embroidery thread ring twist machine which is based on DT98 series thread making machine.
And filament embroidery thread ring twist machine owns Japan Mitsubishi frequency conversion control, pulling capstan roller, imported high speed steel containing oil, CNC forming, 1kg--1.5kg roll capacity without knot, high speed and is easy to operate, with high quality of man-made filament.
Applicable of chemical filament yarn twisting: sewing thread, embroidery thread, bags yarn, zipper yarn, knitting yarns etc...
Ply count range: 50D—1000D.
Hangzhou DengTe Textile Machinery CO., Ltd. is a technical innovation enterprise, which is located in the famous beautiful tourist city --Hangzhou. DT has unique research and innovative technology for the one-step twisting machine.



Spindle arrangement | 2×1 | 3×1 |
Supply spindle NO. (1section) | 36 | 36 |
Ring spindle NO. (1section) | 18 | 12 |
Supply spindle NO. (10section) | 360 | 360 |
Ring spindle NO. (10section) | 180 | 120 |
Main Technical Date:
Twist range | 120 to 1250t/m, 3 to 31t/inch |
Twist direction | S or Z changeable |
Assemble ends | 2-3 |
Roller diameter | 49mm |
Ring | Φ110mm |
Max.winding height | 330mm |
Spindle driving | Spindle belt drive |
Start mode | Stepless speed controlled by inverter |
Take-up spindle gauge | 2×1 162mm 3×1 240mm |
Spindle speed | 600rpm |
Take-up bobbin capacity | 2×1 1.1kg 3×1 1.1kg or1.5kg |
Max.installed power | 11KW |
Overall Size | L×W×H=17.30M×1.40M×1.90M L×W×H=21.70M×1.40M×1.90M |
