Rayon Twisting Machine

We would be grateful if you would execute the order as speedily as possible. Any delay could lead to future problems with our clients. With regard to future quantities, we hope that you will be able to make us an offer. Very glad to receive your contact in the early future.

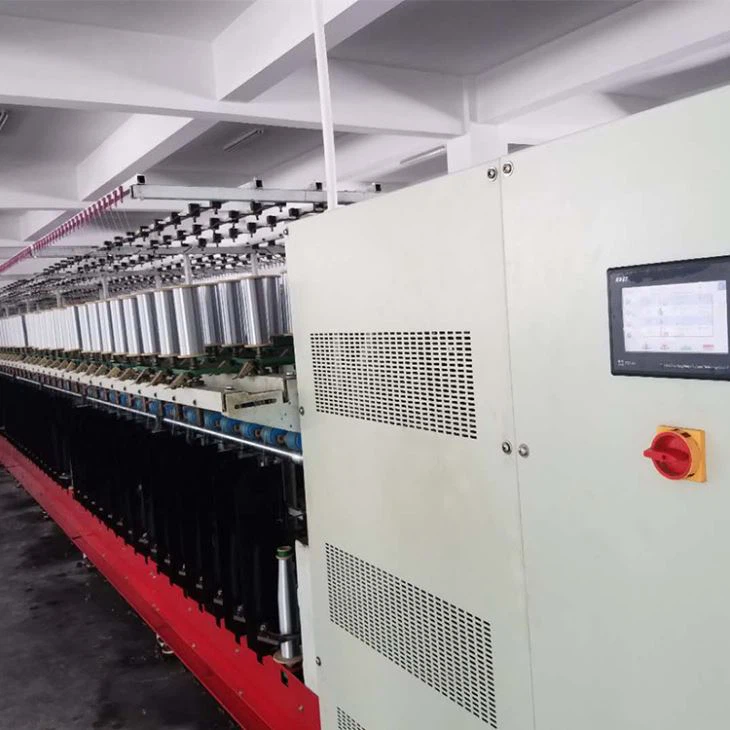

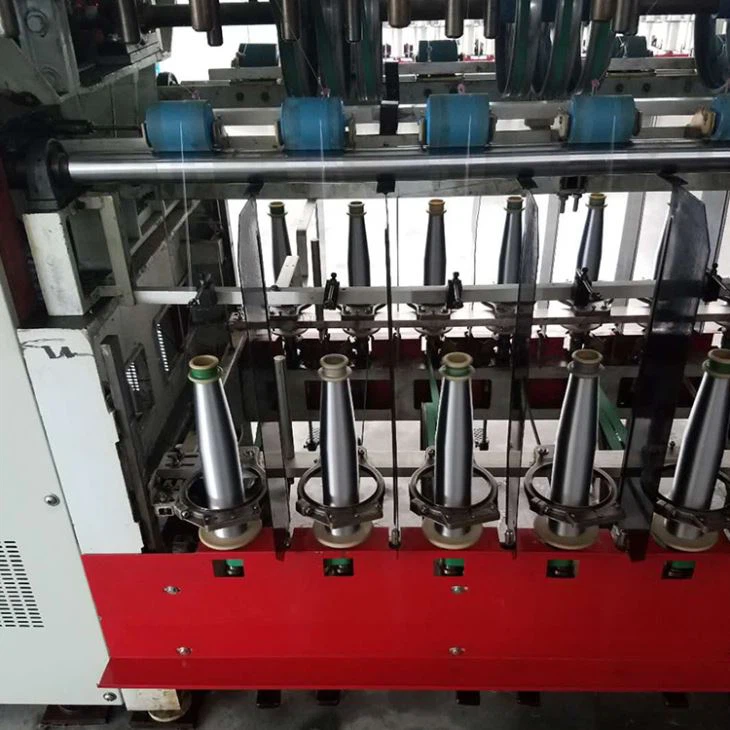

DT9808 CNC composite twisting machine

It owns Japan Mitsubishi frequency conversion control, pulling capstan roller, imported high speed steel containing oil, CNC forming, 1kg--1.5kg roll capacity without knot, high speed and is easy to operate, with high quality of man-made filament.

Applicable of chemical filament yarn twisting: sewing thread, embroidery thread, bags yarn, zipper yarn, knitting yarns etc...

Ply count range: 50D—1000D

FAQ

What's your delivery time ?

It depends. If your ordering is standard and in stock, we can deliver immediately. If not, about one month working days for machines and about ten days for tools.

What are the payment terms you accept?

We accept T/T, L/C etc.

Main Technical Date:

With the development of control technology, the traditional centralized drive has been replaced by decentralized drive. In other words, the spindle is driven by an ac motor. In order to make the spindle speed adjustable, frequency control is usually adopted. The control rollers are driven by independent motors. According to different control requirements, the driving motor can be stepper motor, dc motor or ac variable frequency speed motor. In this way, not only the complex transmission mechanism in the centralized drive system can be eliminated, but also the traditional centralized drive spinning machine can spin out the yarn pattern which cannot be spun out because each roller can be separately controlled to facilitate the realization of complex motion control. For the dispersion-driven fancy twister, there are the following main control methods: the first is the use of some inverters have multi-speed operation control function; The second is the use of PLC as a controller to achieve the required control; The third is the use of special fancy twister controller.

In the above several control modes, the first mode can only achieve the basic piecework variable speed operation function, because can only control the ac motor, so can not achieve the reversal control, instantaneous pause is also very difficult. The use of simple PLC can achieve the control function is limited, if the use of high-grade PLC, it is bound to increase the cost of the controller, but also need to increase the corresponding auxiliary control circuit. Using special controller is the development direction of fancy twister, because only specially designed controller can meet all functional requirements of fancy twister. Foreign advanced fancy twister all USES the special controller. There are also many domestic manufacturers to develop their own dedicated controller.
