Sewing Thread Making Machine

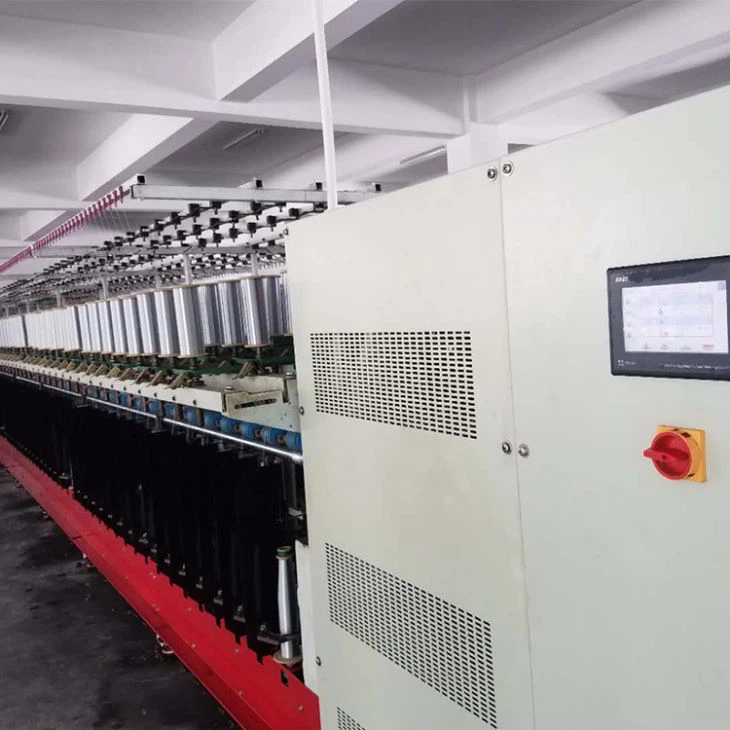

DT9808 CNC composite twisting machine
It owns Japan Mitsubishi frequency conversion control, pulling capstan roller, imported high speed steel containing oil, CNC forming, 1kg--1.5kg roll capacity without knot, high speed and is easy to operate, with high quality of man-made filament.
Applicable of chemical filament yarn twisting: sewing thread, embroidery thread, bags yarn, zipper yarn, knitting yarns etc...
Ply count range: 50D—1000D
FAQ
What kind of packaging you offer?
We will pack the goods well with exporting packages to make sure all goods in a good condition during storage and delivery.
What kind of transportation methods you offer?
We always transport by sea for the goods with large quantity, and we will confirm freight with buyers' prior delivery.
Spindle arrangement | 2×1 | 3×1 |
Supply spindle NO. (1section) | 36 | 36 |
Ring spindle NO. (1section) | 18 | 12 |
Supply spindle NO. (10section) | 360 | 360 |
Ring spindle NO. (10section) | 180 | 120 |
Main Technical Date:
Twist range | 120 to 1250t/m, 3 to 31t/inch |
Twist direction | S or Z changeable |
Assemble ends | 2-3 |
Roller diameter | 49mm |
Ring | Φ110mm |
Max.winding height | 330mm |
Spindle driving | Spindle belt drive |
Start mode | Stepless speed controlled by inverter |
Take-up spindle gauge | 2×1 162mm 3×1 240mm |
Spindle speed | 600rpm |
Take-up bobbin capacity | 2×1 1.1kg 3×1 1.1kg or1.5kg |
Max.installed power | 11KW |
Overall Size | L×W×H=17.30M×1.40M×1.90M L×W×H=21.70M×1.40M×1.90M |
