High Strength Industrial Sewing Yarn Double Twister Machine

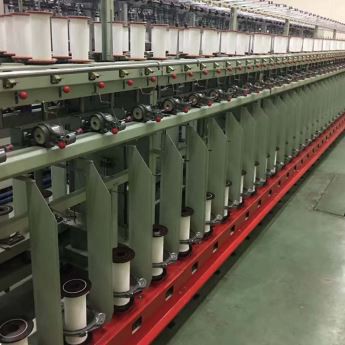

DT2005 Precision CNC Composite Twisting Machine high strength industrial sewing yarn double twister machine
The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement. If you need some kind of thread and yarns, not machine, you can also call us and tell us you requirements about thread or yarns and we will produce it in accordance with your demand.high strength industrial sewing yarn double twister machine
High Quality Yarn
Winch roller driven by single spindle, more accurate yarn twist, no external force extrusion, more rounded cross section;
Display of computer tracking on spindle speed, ensure accuracy of both initial and compound twist;
No oil imported materials of high speed steel making, less breakage;
NC constant tension winding, ensure constant thread speed, volume weight up to 1.6kg.
Ply Count Range:
2×1: 50D—500D
3×1: 50D—1000D
Products apply for sewing, embroidery, bonded thread.
high strength industrial sewing yarn double twister machine
Spindle arrangement | 2×1 | 3×1 | |
Supply spindle NO. (1section) | 36 | 40 | 36 |
Ring spindle NO. (1section) | 18 | 20 | 12 |
Supply spindle NO. (10section) | 360 | 400 | 360 |
Ring spindle NO. (10section) | 180 | 200 | 120 |
Main Technical Date:
Twist range | 650 to 1250t/m, 3 to 32t/inch |
Twist direction | S or Z changeable |
Assemble ends | 2-4 |
Ring | Φ115mm Φ140mm |
Max.winding height | 330mm |
Spindle driving | Tangential bel driving |
Start mode | Stepless speed controlled by inverter |
Take-up spindle gauge | 2×1 162mm 180mm 3×1 270mm |
Spindle speed | 6000-7500rpm |
Take-up bobbin capacity | 2×1 1.1kg 3×1 1.6kg or 2kg |
Max.installed power | 16.1kw |
Overall Size | L×W×H=18.84M×1.10M×1.80M |




Textile industry related information
high strength industrial sewing yarn double twister machine
On October 8, the first day of work after the national day, Wugang held the commencement ceremony of the textile and garment industrial park project in the industrial agglomeration area of the city.
It is reported that Wugang textile and garment industrial park covers a total area of 242 mu, with a planned total construction area of 246000 square meters. Among the nine light industry standardization plants, six in the east area have a construction area of 143000 square meters and three in the west area have a construction area of 103000 square meters, with a total investment of about 1.53 billion yuan, From the development and construction of the assets of the former Yuhong company of Wugang City obtained by the city's Yinlong group and urban investment company respectively through judicial auction, it is a successful case of the city's adherence to the implementation of the concept of industry-based and project-based disposal of zombie enterprises, which is of great significance to boost the high-quality development of county economy in its jurisdiction.
Yinlong home textile 200000 spindle worsted intelligent production line project started on the same day is located in the east area of textile and garment industrial park. It is invested and constructed by Wugang Yinlong group company, covering an area of more than 180 mu with a total investment of 1 billion yuan. It is planned to build 200000 spindle high-grade pure cotton intelligent compact spinning production line, 3 home textile production lines and 100 circular knitting machines, which are mainly used for the production, R & D and sales of high-grade home textiles, After completion, it is expected to produce 50 million sets of bedding annually, with an annual output value of 1.9 billion yuan, an annual profit and tax of 190 million yuan, and arrange employment for 600 people. Based on this, it is planned to build a production base of high-grade pure cotton household textiles with the most complete production process in our province and even the whole country. The Jinyuan garment making project started at the same time is located in the west area of the textile and garment industrial park. It is jointly invested and constructed by Wugang Jinyuan garment making company and Wugang Zhenyuan garment making company. It mainly constructs 36 production lines, forms a production capacity of 100 million knitted garments per year, and can arrange 2000 jobs. After the project is completed and put into operation, the annual output value is 1 billion yuan and can earn foreign exchange of 150 million US dollars.
According to the general requirements of "safety first, quality first and efficiency first", the city will realize the fine management of engineering construction and build a first-class high-quality engineering project.
