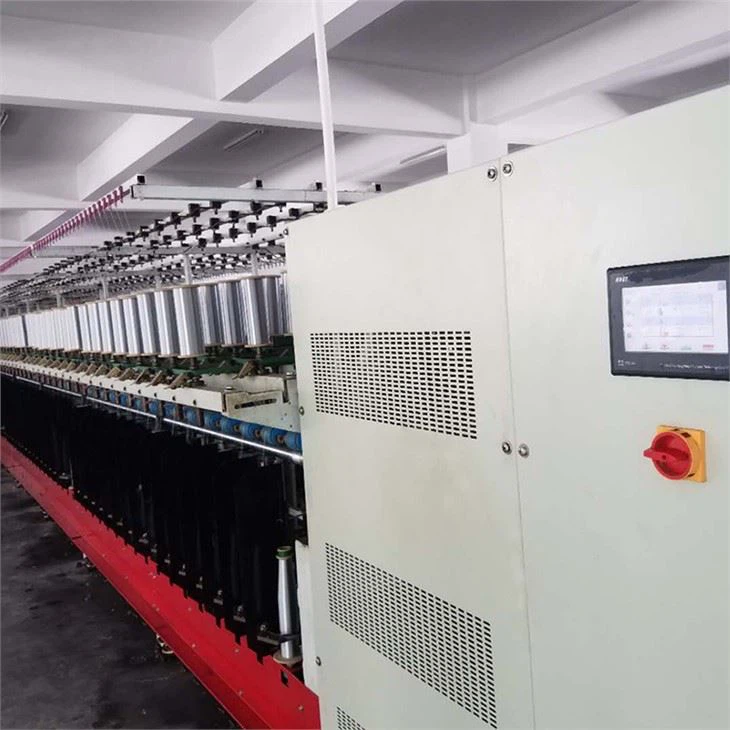

Polyester Sewing Thread Twisting Machine
Hangzhou DengTe Textile Machinery CO., Ltd. is a technical innovation enterprise, which is located in the famous beautiful tourist city --Hangzhou. DT has unique research and innovative technology for the one-step twisting machine.

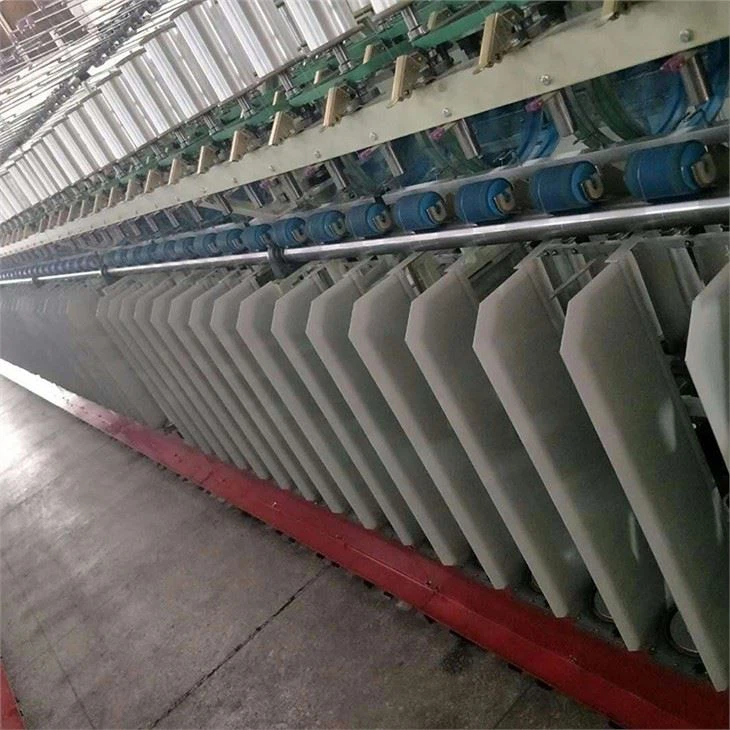

Using one-step twisting process of the upper fist twist, assembling, lower after twist is a big advantage of DT9808 Polyester Sewing Thread Twisting Machine CNC composite twisting machine which is based on DT98 series thread making machine.
And DT9808 Polyester Sewing Thread Twisting Machine CNC composite twisting machine owns Japan Mitsubishi frequency conversion control, pulling capstan roller, imported high speed steel containing oil, CNC forming, 1kg--1.5kg roll capacity without knot, high speed and is easy to operate, with high quality of man-made filament.
Applicable of chemical filament yarn twisting: sewing thread, embroidery thread, bags yarn, zipper yarn, knitting yarns etc...
Ply count range: 50D—1000D
Spindle arrangement | 2×1 | 3×1 |
Supply spindle NO. (1section) | 36 | 36 |
Ring spindle NO. (1section) | 18 | 12 |
Supply spindle NO. (10section) | 360 | 360 |
Ring spindle NO. (10section) | 180 | 120 |
Main Technical Date:
Twist range | 120 to 1250t/m, 3 to 31t/inch |
Twist direction | S or Z changeable |
Assemble ends | 2-3 |
Roller diameter | 49mm |
Ring | Φ110mm |
Max.winding height | 330mm |
Spindle driving | Spindle belt drive |
Start mode | Stepless speed controlled by inverter |
Take-up spindle gauge | 2×1 162mm 3×1 240mm |
Spindle speed | 600rpm |
Take-up bobbin capacity | 2×1 1.1kg 3×1 1.1kg or1.5kg |
Max.installed power | 11KW |
Overall Size | L×W×H=17.30M×1.40M×1.90M L×W×H=21.70M×1.40M×1.90M |
Information about textile industry
Recently, the national textile industry textile machinery · high speed winding machine" industry standard examination and approval meeting mainly drafted by Hangzhou Dengte Textile Machinery Co., Ltd. was held in high tech Zone (Binjiang).
At the meeting, the task source of the standard, the establishment of the standard working group and the formulation principle, the main working process and the formation of the draft for examination and approval were seriously and warmly discussed in accordance with the procedures, including "automatic control unit", "guide wire movement", "yarn breaking self stop", "single spindle noise during no-load operation", "test method" and "length counting inspection" The representatives of manufacturing enterprises and customers put forward suggestions on the revision of product and industry standards. After full discussion and careful examination and approval, experts and representatives at the meeting agreed that the industry standard of "textile machinery · high speed winding machine" reached the advanced level in China, filling the gap of national industry standard for high-speed winding machine in textile industry.
