Product Introduction

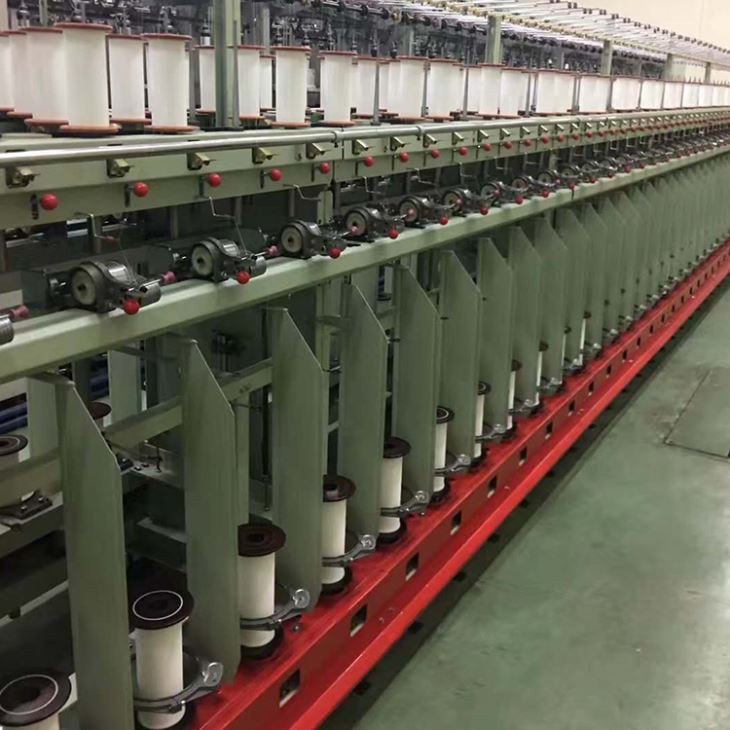

DT2005 Precision CNC Composite Twisting Machine

We are pleased that our technical staff assisted you so capably. We would like you to know that if you need to contact us at any time in the future. If we can be of service to you again, please let us know. It would be necessary for you to test the market of our products at your end. You would also have to build up a much larger turnover to justify. If you feel interested, we can enclose price lists covering all the products you need and look forward to your reply.


High Quality Yarn

Winch roller driven by single spindle, more accurate yarn twist, no external force extrusion, more rounded cross section;

Display of computer tracking on spindle speed, ensure accuracy of both initial and compound twist and easy to operate;

No oil imported materials of high speed steel making, less breakage;

NC constant tension winding, ensure constant thread speed, volume weight up to 1.6kg;

Twist C.V≤1.5%, meet the requirements of the highest quality yarn.


Ply Count Range:

2×1: 50D—500D

3×1: 50D—1000D

Products apply for sewing, embroidery, bonded thread.


FAQ

Why choose thread twisting machine for sale?

We are one of leader in this field (in China). Our quality products and service have enabled us to expand our market from china to more than 60 countries.

Where are we located in?

We are in Hangzhou city, Zhejiang province, China.

How is your factory?

We are factory specializing in the manufacture and export of machines for more than 10 years, all of the production we sale are at a very best price and high quality.





Spindle arrangement

2×1

3×1

Supply spindle NO. (1section)

36

40

36

Ring spindle NO. (1section)

18

20

12

Supply spindle NO. (10section)

360

400

360

Ring spindle NO. (10section)

180

200

120


Main Technical Date:

Twist range

650 to 1250t/m, 3 to 32t/inch

Twist direction

S or Z changeable

Assemble ends

2-4

Ring

Φ115mm Φ140mm

Max.winding height

330mm

Spindle driving

Tangential bel driving

Start mode

Stepless speed controlled by inverter

Take-up spindle gauge

2×1 162mm 180mm

3×1 270mm

Spindle speed

6000-7500rpm

Take-up bobbin capacity

2×1 1.1kg

3×1 1.6kg or 2kg

Max.installed power

16.1kw

Overall Size

L×W×H=18.84M×1.10M×1.80M
