Bonded Thread Making Machine
video

Bonded Thread Making Machine

You will be aware that inflation is affecting industry as a whole. We have been affected like everyone else and some price increases have been unavoidable. We have not, however, increased our price across the broad. For our records, we are pleased to note that you could choose our products to save your costs and gain more profit.
Send Inquiry
Chat Now
Product Introduction

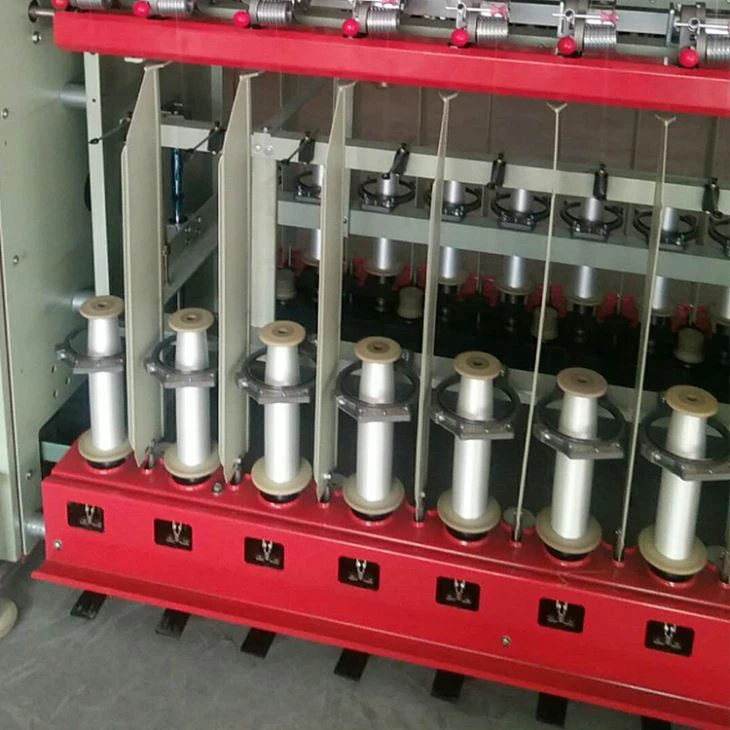

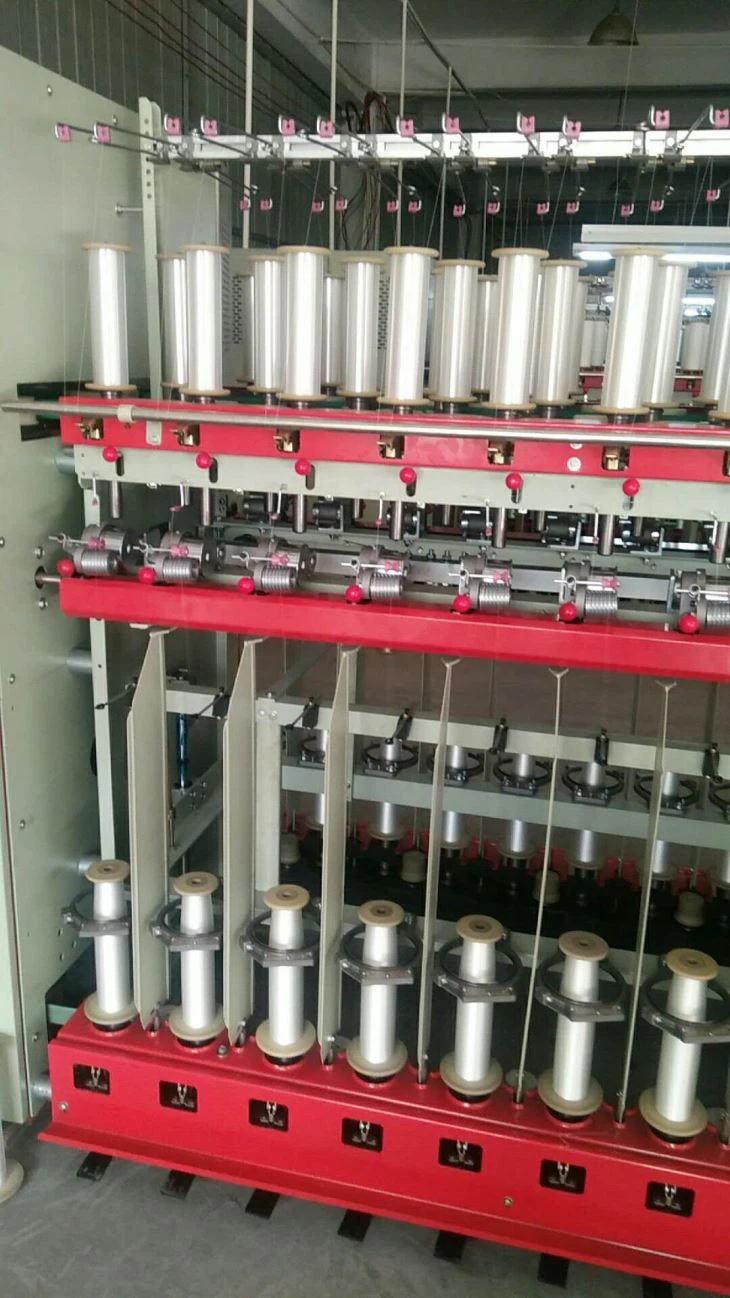

DT2005 Precision CNC Composite Twisting Machine

You will be aware that inflation is affecting industry as a whole. We have been affected like everyone else and some price increases have been unavoidable. We have not, however, increased our price across the broad. For our records, we are pleased to note that you could choose our products to save your costs and gain more profit.


High Quality Yarn

Winch roller driven by single spindle, more accurate yarn twist, no external force extrusion, more rounded cross section;

Display of computer tracking on spindle speed, ensure accuracy of both initial and compound twist and easy to operate;

No oil imported materials of high speed steel making, less breakage;

NC constant tension winding, ensure constant thread speed, volume weight up to 1.6kg.


Ply Count Range:

2×1: 50D—500D

3×1: 50D—1000D

Products apply for sewing, embroidery, bonded thread.


FAQ

Delivery time?

15-20 days for OEM, 5-7days for ready goods.

Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

How do you make our business long-term and good relationship?

We keep good quality and competitive price to ensure our customers benefit.

We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.



Spindle arrangement

2×1

3×1

Supply spindle NO. (1section)

36

40

36

Ring spindle NO. (1section)

18

20

12

Supply spindle NO. (10section)

360

400

360

Ring spindle NO. (10section)

180

200

120


Main Technical Date:

Twist range

650 to 1250t/m, 3 to 32t/inch

Twist direction

S or Z changeable

Assemble ends

2-4

Ring

Φ115mm Φ140mm

Max.winding height

330mm

Spindle driving

Tangential bel driving

Start mode

Stepless speed controlled by inverter

Take-up spindle gauge

2×1 162mm 180mm

3×1 270mm

Spindle speed

6000-7500rpm

Take-up bobbin capacity

2×1 1.1kg

3×1 1.6kg or 2kg

Max.installed power

16.1kw

Overall Size

L×W×H=18.84M×1.10M×1.80M

According to customs statistics, China's textile machinery imports and exports in January to may have a substantial increase. To be specific, from January to May 2011, China's total import and export of textile machinery totaled 3.209 billion us dollars, up by 51.39% year on year. Among them: textile machinery exports of $870 million, up 39.12% year-on-year; Imports totaled us $2.339 billion, up 56.53 percent year-on-year. Specifically, from January to May 2011, China imported textile machinery from 53 countries and regions, with a total import value of $2.339 billion, up 56.53% year on year. From the category of imported products, knitting machine import ranked first. Imports totaled us $570 million, up 41.92 percent year-on-year and accounting for 24.36 percent of total imports. Weaving preparation machinery increased by 128.93% year on year. From the perspective of importing countries and regions, Japan, Germany, Italy, Switzerland and Taiwan were the major countries and regions of textile machinery import from January to May 2011. The total trade volume of the top five importing countries was 1.983 billion us dollars, with a year-on-year growth of 60.31%, accounting for 84.77% of the total import volume. Japan's textile machinery imports led the way, with imports of us $749 million, up 64.94 percent year-on-year.
