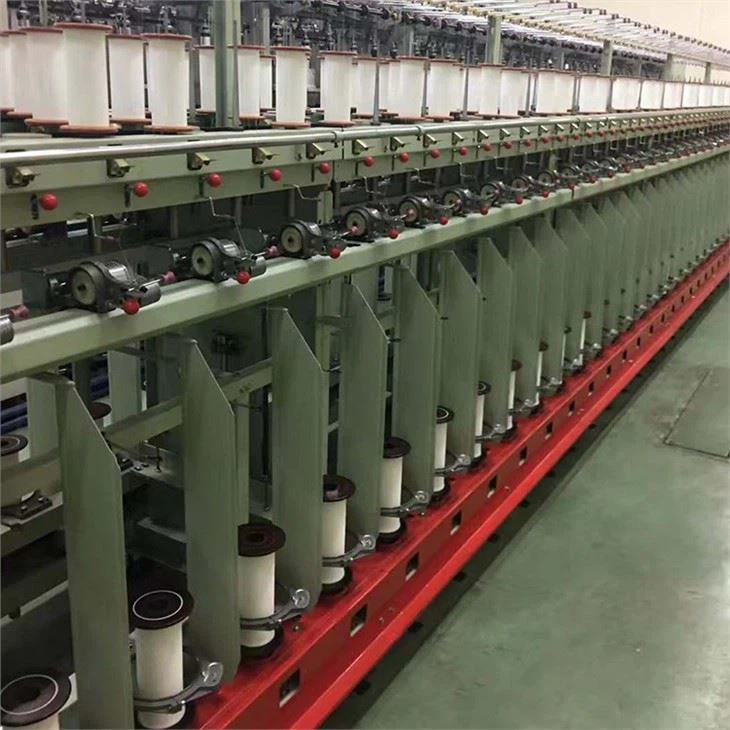

High Strength Industrial Filament Sewing Yarn Twister Machine
video

High Strength Industrial Filament Sewing Yarn Twister Machine

The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement.
Send Inquiry
Chat Now
Product Introduction

DT2005 Precision CNC Composite Twisting Machine

high strength industrial filament sewing yarn twister machine


The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement. If you need some kind of thread and yarns, not machine, you can also call us and tell us you requirements about thread or yarns and we will produce it in accordance with your demand.high strength industrial filament sewing yarn twister machine

High Quality Yarn

Winch roller driven by single spindle, more accurate yarn twist, no external force extrusion, more rounded cross section;

Display of computer tracking on spindle speed, ensure accuracy of both initial and compound twist;

No oil imported materials of high speed steel making, less breakage;

NC constant tension winding, ensure constant thread speed, volume weight up to 1.6kg.


Ply Count Range:

2×1: 50D—500D

3×1: 50D—1000D

Products apply for sewing, embroidery, bonded thread.

high strength industrial filament sewing yarn twister machine

Spindle arrangement

2×1

3×1

Supply spindle NO. (1section)

36

40

36

Ring spindle NO. (1section)

18

20

12

Supply spindle NO. (10section)

360

400

360

Ring spindle NO. (10section)

180

200

120


Main Technical Date:

Twist range

650 to 1250t/m, 3 to 32t/inch

Twist direction

S or Z changeable

Assemble ends

2-4

Ring

Φ115mm Φ140mm

Max.winding height

330mm

Spindle driving

Tangential bel driving

Start mode

Stepless speed controlled by inverter

Take-up spindle gauge

2×1 162mm 180mm

3×1 270mm

Spindle speed

6000-7500rpm

Take-up bobbin capacity

2×1 1.1kg

3×1 1.6kg or 2kg

Max.installed power

16.1kw

Overall Size

L×W×H=18.84M×1.10M×1.80M

1-Twisting Machine2-Rewinding Machine3-Thread & Yarns4-Knitting Machine


Textile industry related information

high strength industrial filament sewing yarn twister machine


According to the preliminary GDP accounting data for the first half of the year recently released by the National Bureau of statistics, the GDP in the first half of the year was 53216.7 billion yuan, an increase of 12.7% year-on-year at comparable prices, down 5.6 percentage points from the first quarter; The average growth rate in the two years was 5.3%, and the average growth rate in the two years was 0.3 percentage points higher than that in the first quarter. A spokesman for the National Bureau of Statistics said: in the first half of the year, the national economy can be said to have sustained and stable recovery, strengthened in stability and improved in stability. According to some data currently available, the textile industry has made its own contribution to this report card.

The economy continued to recover steadily and the operation quality was further improved

In the first half of the year, the added value of China's primary industry was 2840.2 billion yuan, a year-on-year increase of 7.8% and an average increase of 4.3% in the two years; The added value of the secondary industry was 20715.4 billion yuan, a year-on-year increase of 14.8% and an average increase of 6.1% in the two years; The added value of the tertiary industry was 29661.1 billion yuan, a year-on-year increase of 11.8% and an average increase of 4.9% in the two years. Relevant statistics show that in the second quarter, industrial production continued to grow rapidly, industrial added value increased by 8.8% year-on-year, driving economic growth by 2.8 percentage points, with an average growth of 6.4% in two years. Among them, the added value of manufacturing industry increased by 9.2% year-on-year, accounting for 28.3% of GDP, 0.8 percentage points higher than that in the first quarter, and the recovery trend of proportion has continued for three quarters.

Consumption has a significant "ballast" effect on economic growth. With the continuous development of a series of policies to expand domestic demand and promote consumption, investment demand has driven the sustained and stable recovery of the economy. All regions and departments earnestly implement the decisions and arrangements of the Party Central Committee, focus on the "two new and one heavy" and weaknesses, increase the construction of major projects, expand effective investment, and support the recovery of the economy. In the first half of the year, the contribution rate of total capital formation to economic growth was 19.2%, driving economic growth by 2.4 percentage points. Among them, the contribution rate of total capital formation to economic growth in the second quarter was 13.2%, driving economic growth by 1.0 percentage points.

In the first half of the year, the national fixed asset investment (excluding farmers) increased by 12.6% year-on-year, with an average growth of 4.4% in the two years. Among them, the fixed asset investment in the textile industry completed only from January to May increased by 17.1% year-on-year, the garment industry increased by 8.3% year-on-year, and the chemical fiber industry increased by 21.7% year-on-year. Net export demand continued to grow. The results of stabilizing foreign trade continue to show, and the import and export growth is good. In the first half of the year, the contribution rate of net exports of goods and services to economic growth was 19.1%, driving economic growth by 2.4 percentage points, with an average of 1.1 percentage points in the two years. According to customs data, China's textile and garment exports maintained a steady growth in the first half of the year, with an increase of 3.3% and 11.9% respectively over the same period last year in terms of RMB and US dollars, and also maintained a rapid growth over the same period in 2019. However, it is worth noting that textiles decreased year-on-year due to the decline of mask exports, and clothing grew rapidly driven by the recovery of external demand.
