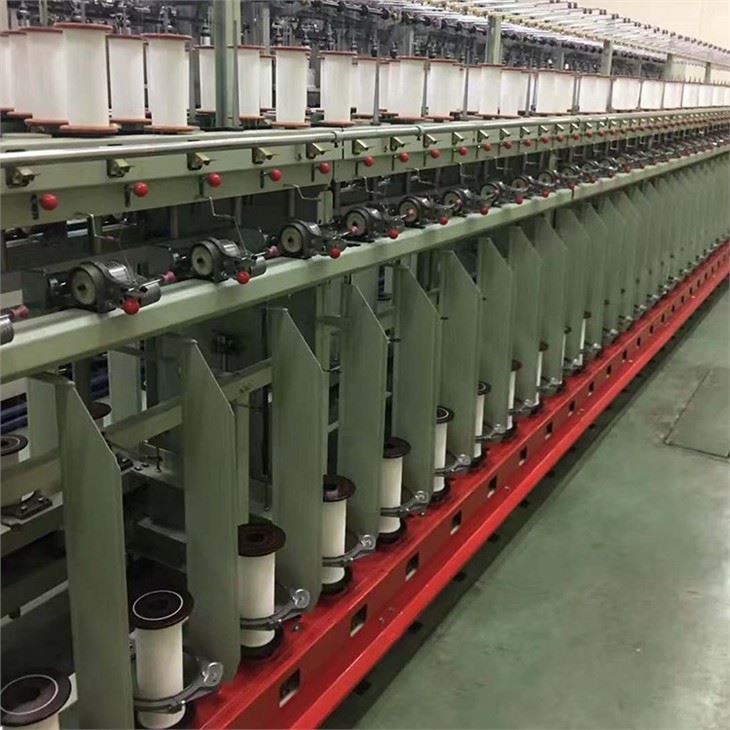

High Strength Industrial Filament Sewing Yarn Ring Twister Machine
DT2005 Precision CNC Composite Twisting Machine
high strength industrial filament sewing yarn ring twister machine
The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement. If you need some kind of thread and yarns, not machine, you can also call us and tell us you requirements about thread or yarns and we will produce it in accordance with your demand.high strength industrial filament sewing yarn ring twister machine
High Quality Yarn
Winch roller driven by single spindle, more accurate yarn twist, no external force extrusion, more rounded cross section;
Display of computer tracking on spindle speed, ensure accuracy of both initial and compound twist;
No oil imported materials of high speed steel making, less breakage;
NC constant tension winding, ensure constant thread speed, volume weight up to 1.6kg.
Ply Count Range:
2×1: 50D—500D
3×1: 50D—1000D
Products apply for sewing, embroidery, bonded thread.
high strength industrial filament sewing yarn ring twister machine
Spindle arrangement | 2×1 | 3×1 | |
Supply spindle NO. (1section) | 36 | 40 | 36 |
Ring spindle NO. (1section) | 18 | 20 | 12 |
Supply spindle NO. (10section) | 360 | 400 | 360 |
Ring spindle NO. (10section) | 180 | 200 | 120 |
Main Technical Date:
Twist range | 650 to 1250t/m, 3 to 32t/inch |
Twist direction | S or Z changeable |
Assemble ends | 2-4 |
Ring | Φ115mm Φ140mm |
Max.winding height | 330mm |
Spindle driving | Tangential bel driving |
Start mode | Stepless speed controlled by inverter |
Take-up spindle gauge | 2×1 162mm 180mm 3×1 270mm |
Spindle speed | 6000-7500rpm |
Take-up bobbin capacity | 2×1 1.1kg 3×1 1.6kg or 2kg |
Max.installed power | 16.1kw |
Overall Size | L×W×H=18.84M×1.10M×1.80M |




Textile industry related information
high strength industrial filament sewing yarn ring twister machine
Since the beginning of this year, the industry has faced complex challenges at home and abroad. In particular, the domestic epidemic has changed one after another in the second half of the year, and the dual control of energy consumption has continued to increase, which has a significant impact on the recovery of the main operating indicators of the industry. The stability of domestic demand market and the increase of international demand are still conducive to the economic operation of the industry. The continuous rise of international oil price provides strong support for the chemical fiber market, but it also increases the production cost of enterprises. Looking forward to the whole year, the operation of the chemical fiber industry will still face many tests, but the industry has good development toughness and risk resistance, and will still achieve stable development.
#01 slowdown in production growth
In the first three quarters, the overall operating load of the chemical fiber industry remained high, but in September, due to the double control of energy consumption, the operating load decreased rapidly. Taking direct spinning polyester filament as an example, the operating load was about 85% in early September and decreased to about 75% in late September; Although it rebounded slightly in October, it is still in low load operation, with an average monthly operating load of about 77%, a new low in the year. According to the data of the National Bureau of statistics, from January to September, the chemical fiber output was 50.37 million tons, with a year-on-year increase of 13.54%. Taking January to September 2019 as the base period, the average growth rate of chemical fiber output in two years was 6.75%.
On a monthly basis, affected by the change of chemical fiber output base last year, the year-on-year growth rate of chemical fiber output this year fell month by month (Figure 2). In addition, the energy consumption double control limit film sounded, the chemical fiber output in a single month in September decreased by 2.0% year-on-year, and the growth rate of chemical fiber output from January to September decreased to 13.5%, 3.6 percentage points lower than that in the first half of the year. From the two-year average growth rate, the average growth rate in the first three quarters remained stable and decreased, and the growth rate slowed down.
