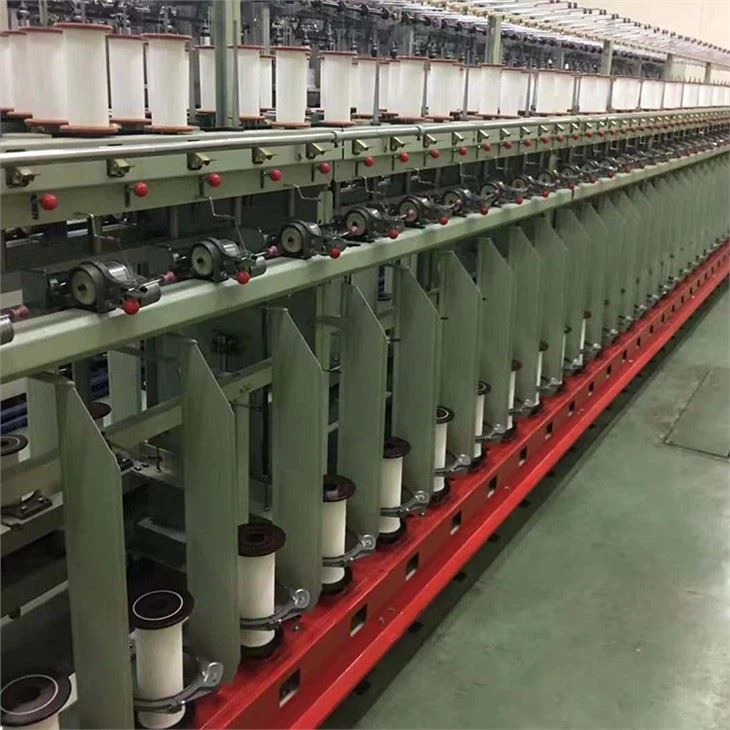

High Strength Industrial Sewing Yarn Twister Machine
video

High Strength Industrial Sewing Yarn Twister Machine

The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement.
Send Inquiry
Chat Now
Product Introduction

DT2005 Precision CNC Composite Twisting Machine high strength industrial sewing yarn twister machine

The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement. If you need some kind of thread and yarns, not machine, you can also call us and tell us you requirements about thread or yarns and we will produce it in accordance with your demand.high strength industrial sewing yarn twister machine

High Quality Yarn

Winch roller driven by single spindle, more accurate yarn twist, no external force extrusion, more rounded cross section;

Display of computer tracking on spindle speed, ensure accuracy of both initial and compound twist;

No oil imported materials of high speed steel making, less breakage;

NC constant tension winding, ensure constant thread speed, volume weight up to 1.6kg.


Ply Count Range:

2×1: 50D—500D

3×1: 50D—1000D

Products apply for sewing, embroidery, bonded thread.

high strength industrial sewing yarn twister machine


Spindle arrangement

2×1

3×1

Supply spindle NO. (1section)

36

40

36

Ring spindle NO. (1section)

18

20

12

Supply spindle NO. (10section)

360

400

360

Ring spindle NO. (10section)

180

200

120


Main Technical Date:

Twist range

650 to 1250t/m, 3 to 32t/inch

Twist direction

S or Z changeable

Assemble ends

2-4

Ring

Φ115mm Φ140mm

Max.winding height

330mm

Spindle driving

Tangential bel driving

Start mode

Stepless speed controlled by inverter

Take-up spindle gauge

2×1 162mm 180mm

3×1 270mm

Spindle speed

6000-7500rpm

Take-up bobbin capacity

2×1 1.1kg

3×1 1.6kg or 2kg

Max.installed power

16.1kw

Overall Size

L×W×H=18.84M×1.10M×1.80M

1-Twisting Machine2-Rewinding Machine3-Thread & Yarns4-Knitting Machine


Textile industry related information

high strength industrial sewing yarn twister machine


Dyeing and finishing machinery

In the first half of 2021, under the background of overall stable epidemic prevention and control in China, the production and market situation of dyeing and finishing machinery industry continued to improve and rebounded in an all-round way. Although the global epidemic has not been effectively controlled, the overseas market demand is gradually released, and the export market situation of dyeing and finishing machinery is gradually warmer. In the first half of 2021, the sales volume of various equipment increased significantly compared with the same period last year, but there is still a certain gap compared with the market situation before the epidemic.

The market situation of pretreatment equipment has maintained a stable growth trend. From January to June 2021, the cumulative sales of washing machines increased by 23% year-on-year, and the cumulative sales of mercerizing machines increased by 11% year-on-year. The sales of continuous scouring and bleaching machines were basically the same as that of the same period last year.

The domestic demand of the traditional printing market was basically stable. Due to the epidemic, the traditional printing market was greatly affected in the same period last year. The market gradually recovered in the first half of this year, and the export market was slightly better than that in the same period last year. From January to June 2021, the sales of round screen printing machines increased by 10% year-on-year, and the sales of flat screen printing machines were basically the same as that of the same period last year.

In recent years, especially during the epidemic, compared with traditional printing machines, digital printing machines have shown the characteristics of good flexibility and market adaptability, and the market has maintained a high-speed growth trend. From January to June 2021, both digital direct jet printing machine and high-speed paper printer increased by more than 20% over the same period last year.

Overall, in the first half of 2021, the market of dyeing and finishing machinery industry operated stably, and the gradual recovery of textile and garment industry chain laid a foundation for stimulating the domestic demand market of dyeing and finishing machinery. Relying on China's complete textile and garment industry chain, domestic dyeing and finishing equipment has always maintained a strong development state under the condition that the global epidemic is still serious. But at the same time, it should be noted that at present, the global epidemic has not been effectively controlled, the domestic epidemic has rebounded from time to time, enterprises are also facing problems such as rising raw materials and freight charges, and various uncertain factors still pose a severe test to the comprehensive recovery of the market. According to the sampling questionnaire survey feedback of the association, in the face of adversity, on the one hand, industry enterprises actively cultivate their internal skills, develop new technologies and products, improve their competitiveness, and on the other hand, constantly explore new markets. Most enterprises are optimistic about the market situation in the second half of the year.
