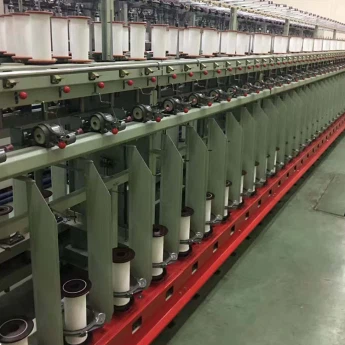

High Strength Industrial Sewing Thread Doubling Twister Machine
DT2005 Precision CNC Composite Twisting Machine high strength industrial sewing thread doubling twister machine
The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement. If you need some kind of thread and yarns, not machine, you can also call us and tell us you requirements about thread or yarns and we will produce it in accordance with your demand.high strength industrial sewing thread double twister machine
High Quality Yarn
Winch roller driven by single spindle, more accurate yarn twist, no external force extrusion, more rounded cross section;
Display of computer tracking on spindle speed, ensure accuracy of both initial and compound twist;
No oil imported materials of high speed steel making, less breakage;
NC constant tension winding, ensure constant thread speed, volume weight up to 1.6kg.
Ply Count Range:
2×1: 50D—500D
3×1: 50D—1000D
Products apply for sewing, embroidery, bonded thread.
high strength industrial sewing thread doubling twister machine
Spindle arrangement | 2×1 | 3×1 | |
Supply spindle NO. (1section) | 36 | 40 | 36 |
Ring spindle NO. (1section) | 18 | 20 | 12 |
Supply spindle NO. (10section) | 360 | 400 | 360 |
Ring spindle NO. (10section) | 180 | 200 | 120 |
Main Technical Date:
Twist range | 650 to 1250t/m, 3 to 32t/inch |
Twist direction | S or Z changeable |
Assemble ends | 2-4 |
Ring | Φ115mm Φ140mm |
Max.winding height | 330mm |
Spindle driving | Tangential bel driving |
Start mode | Stepless speed controlled by inverter |
Take-up spindle gauge | 2×1 162mm 180mm 3×1 270mm |
Spindle speed | 6000-7500rpm |
Take-up bobbin capacity | 2×1 1.1kg 3×1 1.6kg or 2kg |
Max.installed power | 16.1kw |
Overall Size | L×W×H=18.84M×1.10M×1.80M |




Textile industry related information
high strength industrial sewing thread doubling twister machine
weaving machinery
In the first half of 2021, thanks to the effective control of the domestic epidemic and the continuous release of macro policy effects, the market demand gradually recovered, the operating environment continuously improved, the growth rate of weaving machinery remained in a high range, and the foreign trade export was better than expected. According to the data of the National Bureau of statistics, downstream textiles such as clothing, household textiles and industrial textiles (textile belt, cord fabric, awning, canvas, etc.) have increased at the same ratio, the production situation continues to improve, and the industry boom is running at a high level. At the same time, due to the continuous influence of the expansion of fabric varieties and equipment transformation and upgrading, under the condition of low base, rapier looms, air-jet looms The production and sales of water jet looms increased significantly year-on-year. According to the statistics of the association, from January to June 2021, the sales of high-speed rapier looms of major domestic manufacturers increased by 81.48% year-on-year; The sales of air-jet looms increased by 132.88% year-on-year; The sales of water jet looms increased by 42.86% year-on-year.
It is expected that in the third quarter of 2021, the purchase demand of the end consumer market for clothing, household textiles and industrial textiles will tend to be flat, and the production and operation of weaving machinery will be in a stable situation. The overseas epidemic situation continues and the domestic epidemic situation is sporadically distributed in many places, resulting in a local rebound, which increases the uncertainty of market demand. At the same time, the price of bulk commodities rises significantly and remains high, causing certain production and operation pressure on weaving machinery enterprises. In addition, the pressure of structural labor shortage and insufficient supporting supply has yet to be resolved.
Knitting machinery
In the first half of 2021, the market performance of the three types of knitting machinery is good, with different growth points.
In the first half of the year, the production and sales of circular weft knitting machine industry were booming, and some enterprises had overloaded production. Under the influence of many factors such as the rising price of chemical fiber materials and the strong market demand for some fabric products, downstream weaving enterprises continue to expand production capacity and purchase demand increases. However, the price rise of raw materials such as castings and the extension of the supply cycle of relevant core accessories have a great impact on the delivery cycle of circular weft knitting machine. The overseas market of the circular weft knitting machine industry performed well in the first half of the year, while the global epidemic continued, and the circular weft knitting machine export faced certain difficulties in the later stage. Under the current complex situation, circular weft knitting machine enterprises continue to develop new products, maintain product differentiation, improve quality and enhance core competitiveness. According to the statistics of Textile Machinery Association, the sales volume of circular weft machines increased by 70.6% year-on-year in the first half of 2021.
