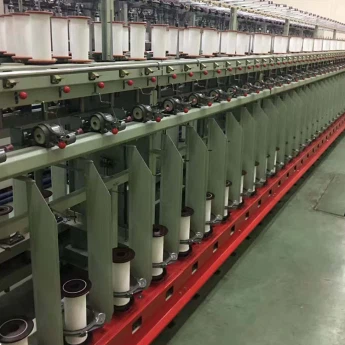

Industrial Sewing Thread Double Twister Machine
DT2005 Precision CNC Composite Twisting Machine industrial sewing thread double twister machine
The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement. If you need some kind of thread and yarns, not machine, you can also call us and tell us you requirements about thread or yarns and we will produce it in accordance with your demand.industrial sewing thread double twister machine
High Quality Yarn
Winch roller driven by single spindle, more accurate yarn twist, no external force extrusion, more rounded cross section;
Display of computer tracking on spindle speed, ensure accuracy of both initial and compound twist;
No oil imported materials of high speed steel making, less breakage;
NC constant tension winding, ensure constant thread speed, volume weight up to 1.6kg.
Ply Count Range:
2×1: 50D—500D
3×1: 50D—1000D
Products apply for sewing, embroidery, bonded thread.
industrial sewing thread double twister machine
Spindle arrangement | 2×1 | 3×1 | |
Supply spindle NO. (1section) | 36 | 40 | 36 |
Ring spindle NO. (1section) | 18 | 20 | 12 |
Supply spindle NO. (10section) | 360 | 400 | 360 |
Ring spindle NO. (10section) | 180 | 200 | 120 |
Main Technical Date:
Twist range | 650 to 1250t/m, 3 to 32t/inch |
Twist direction | S or Z changeable |
Assemble ends | 2-4 |
Ring | Φ115mm Φ140mm |
Max.winding height | 330mm |
Spindle driving | Tangential bel driving |
Start mode | Stepless speed controlled by inverter |
Take-up spindle gauge | 2×1 162mm 180mm 3×1 270mm |
Spindle speed | 6000-7500rpm |
Take-up bobbin capacity | 2×1 1.1kg 3×1 1.6kg or 2kg |
Max.installed power | 16.1kw |
Overall Size | L×W×H=18.84M×1.10M×1.80M |
Textile industry related information
industrial sewing thread double twister machine
In order to implement the spirit of several opinions of the general office of the State Council on carrying out the special action of "three products" in the consumer goods industry to create a good market environment (GBF [2016] No. 40), promote enterprises to accelerate the implementation of the "three products strategy", advocate product innovation and creative design oriented by market demand, and give play to the demonstration and leading role of innovative products, To improve the quality satisfaction and brand trust of innovative products, entrusted by the consumer goods industry department of the Ministry of industry and information technology, China Textile Industry Federation has carried out the cultivation and promotion of ten categories of textile innovative products in 2021. The Productivity Promotion Department of China Textile Industry Federation has conducted qualification and form examination, consumer voting and expert evaluation on the declared enterprises and products, and now plans to award the title of "top ten textile innovative products in 2021" to Anta (China) Co., Ltd., a total of 147 products in ten categories, such as cotton clothes on eight sides.
The list of products to be selected is now publicized. See the annex for details. Please supervise from all walks of life. If you have any objection, please contact us within the publicity period and submit relevant supporting materials.
