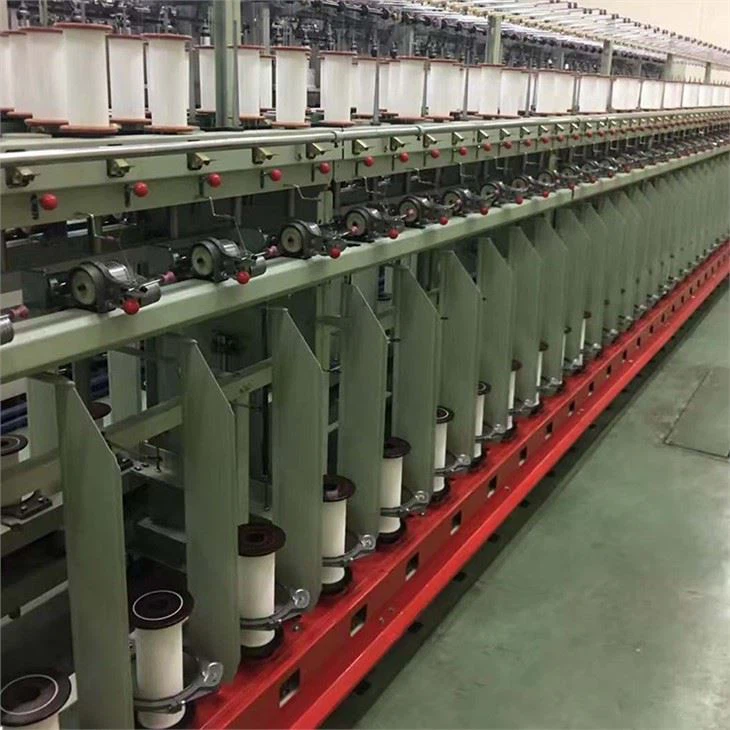

Polyester Embroidery Thread Double Twister Machine
video

Polyester Embroidery Thread Double Twister Machine

The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement.
Send Inquiry
Chat Now
Product Introduction

DT2005 Precision CNC Composite Twisting Machine

polyester embroidery thread double twister machine


The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement. If you need some kind of thread and yarns, not machine, you can also call us and tell us you requirements about thread or yarns and we will produce it in accordance with your demand.polyester embroidery thread double twister machine

High Quality Yarn

Winch roller driven by single spindle, more accurate yarn twist, no external force extrusion, more rounded cross section;

Display of computer tracking on spindle speed, ensure accuracy of both initial and compound twist;

No oil imported materials of high speed steel making, less breakage;

NC constant tension winding, ensure constant thread speed, volume weight up to 1.6kg.


Ply Count Range:

2×1: 50D—500D

3×1: 50D—1000D

Products apply for sewing, embroidery, bonded thread.

polyester embroidery thread double twister machine

Spindle arrangement

2×1

3×1

Supply spindle NO. (1section)

36

40

36

Ring spindle NO. (1section)

18

20

12

Supply spindle NO. (10section)

360

400

360

Ring spindle NO. (10section)

180

200

120


Main Technical Date:

Twist range

650 to 1250t/m, 3 to 32t/inch

Twist direction

S or Z changeable

Assemble ends

2-4

Ring

Φ115mm Φ140mm

Max.winding height

330mm

Spindle driving

Tangential bel driving

Start mode

Stepless speed controlled by inverter

Take-up spindle gauge

2×1 162mm 180mm

3×1 270mm

Spindle speed

6000-7500rpm

Take-up bobbin capacity

2×1 1.1kg

3×1 1.6kg or 2kg

Max.installed power

16.1kw

Overall Size

L×W×H=18.84M×1.10M×1.80M

1-Twisting Machine2-Rewinding Machine3-Thread & Yarns4-Knitting Machine


Textile industry related information

polyester embroidery thread double twister machine


Recently, Xinjiang Zhongtai group registered and established a wholly-owned subsidiary Xinjiang Zhongtai textile and Garment Group Co., Ltd. (hereinafter referred to as "Zhongtai textile and Garment Group") in Korla economic and Technological Development Zone, Bazhou, with a registered capital of 1 billion yuan. One belt, one road, is to take the opportunity to promote the new pattern of the western development. We should thoroughly implement the three year plan of action for the "one belt and one way" initiative and the reform of state-owned enterprises. In accordance with the deployment requirements of the ten major industries during the "14th Five-Year" period, we will comprehensively promote the development of the textile and garment industry in Xinjiang to bring about the implementation of the employment strategy for millions of people. Expand and strengthen the textile and garment industry.

According to the overall strategic arrangement of the reform of "three main businesses" and "ten plates" of Xinjiang Zhongtai group, as a platform company of textile and clothing plate, Zhongtai textile and clothing group will accelerate the integration of upstream and downstream resources and brands inside and outside the region, and take "chain extension, chain strengthening, chain supplement and chain fixation" as the main direction to effectively promote the realization of yarn, printing and dyeing, weaving Development of the whole garment industry chain.

During the "14th five year plan" period, Zhongtai textile and Garment Group will accelerate the construction of the whole industrial chain, move forward from capacity scale to fine management, extend from upstream raw materials to terminal products, upgrade from green manufacturing to intelligent manufacturing, create a high-quality development model of cotton in Xinjiang, supplement the shortcomings of chemical fiber products in Xinjiang, and adhere to the "three chains" isomorphism of industrial chain, value chain and supply chain, Enhance the development of industrial clusters, take the market as the guide, accelerate the adjustment, transformation and upgrading of industrial structure, constantly improve the comprehensive benefits and competitiveness, enlarge the function of state-owned capital, promote the development of textile and garment industry in Xinjiang, promote the construction of the core area of the Silk Road Economic Belt, and contribute to the high-quality economic and social development of state-owned enterprises.

It is reported that the cotton business scope of Zhongtai textile and Garment Group involves planting and acquisition, spinning processing, sales of needle textiles and raw materials, manufacturing of household textile products, manufacturing and sales of industrial textile products, garment manufacturing, procurement and sales agency services, supply chain management services, enterprise management consulting, etc.
