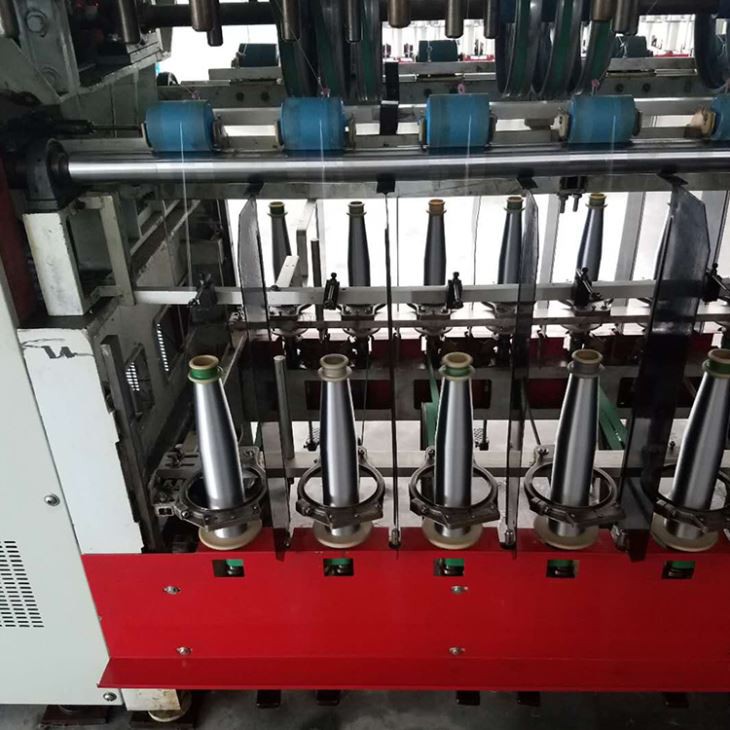

Upper Twisting And Lower Ring Spindle Twisting Machine
video

Upper Twisting And Lower Ring Spindle Twisting Machine

Hangzhou DengTe Textile Machinery CO., Ltd. is a technical innovation enterprise, which is located in the famous beautiful tourist city --Hangzhou. DT has unique research and innovative technology for the one-step twisting machine.
Send Inquiry
Chat Now
Product Introduction

Hangzhou DengTe Textile Machinery CO., Ltd. is a technical innovation enterprise, which is located in the famous beautiful tourist city --Hangzhou. DT has unique research and innovative technology for the one-step twisting machine.


Using one-step twisting process of the upper fist twist, assembling, lower after twist is a big advantage of DT9808 CNC composite twisting machine which is based on DT98 series thread making machine.


And DT9808 CNC composite twisting machine owns Japan Mitsubishi frequency conversion control, pulling capstan roller, imported high speed steel containing oil, CNC forming, 1kg--1.5kg roll capacity without knot, high speed and is easy to operate, with high quality of man-made filament.


Applicable of chemical filament yarn twisting: sewing thread, embroidery thread, bags yarn, zipper yarn, knitting yarns etc...

Ply count range: 50D—1000D


Spindle arrangement

2×1

3×1

Supply spindle NO. (1section)

36

36

Ring spindle NO. (1section)

18

12

Supply spindle NO. (10section)

360

360

Ring spindle NO. (10section)

180

120


Main Technical Date:

Twist range

120 to 1250t/m, 3 to 31t/inch

Twist direction

S or Z changeable

Assemble ends

2-3

Roller diameter

49mm

Ring

Φ110mm

Max.winding height

330mm

Spindle driving

Spindle belt drive

Start mode

Stepless speed controlled by inverter

Take-up spindle gauge

2×1 162mm

3×1 240mm

Spindle speed

600rpm

Take-up bobbin capacity

2×1 1.1kg

3×1 1.1kg or1.5kg

Max.installed power

11KW

Overall Size

L×W×H=17.30M×1.40M×1.90M

L×W×H=21.70M×1.40M×1.90M

1-Twisting Machine2-Rewinding Machine3-Thread & Yarns4-Knitting Machine
