Polyester Industrial Sewing Yarn Doubling Twister Machine
video

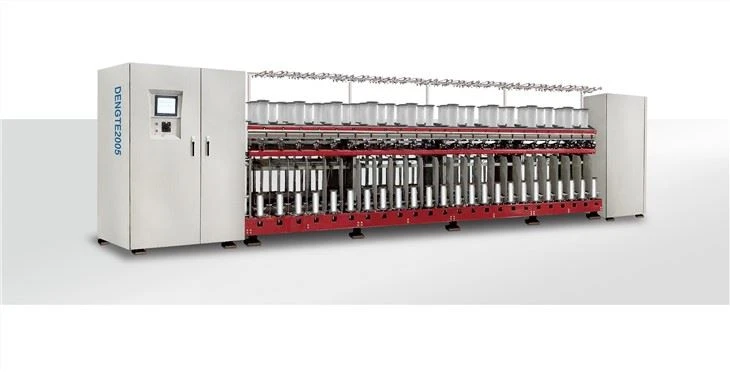

Polyester Industrial Sewing Yarn Doubling Twister Machine

The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement.
Send Inquiry
Chat Now
Product Introduction

DT2005 Precision CNC Composite Twisting Machine polyester industrial sewing yarn doubling twister machine


The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement. If you need some kind of thread and yarns, not machine, you can also call us and tell us you requirements about thread or yarns and we will produce it in accordance with your demand.polyester industrial sewing yarn doubling twister machine

High Quality Yarn

Winch roller driven by single spindle, more accurate yarn twist, no external force extrusion, more rounded cross section;

Display of computer tracking on spindle speed, ensure accuracy of both initial and compound twist;

No oil imported materials of high speed steel making, less breakage;

NC constant tension winding, ensure constant thread speed, volume weight up to 1.6kg.


Ply Count Range:

2×1: 50D—500D

3×1: 50D—1000D

Products apply for sewing, embroidery, bonded thread.

polyester industrial sewing yarn doubling twister machine


Spindle arrangement

2×1

3×1

Supply spindle NO. (1section)

36

40

36

Ring spindle NO. (1section)

18

20

12

Supply spindle NO. (10section)

360

400

360

Ring spindle NO. (10section)

180

200

120


Main Technical Date:

Twist range

650 to 1250t/m, 3 to 32t/inch

Twist direction

S or Z changeable

Assemble ends

2-4

Ring

Φ115mm Φ140mm

Max.winding height

330mm

Spindle driving

Tangential bel driving

Start mode

Stepless speed controlled by inverter

Take-up spindle gauge

2×1 162mm 180mm

3×1 270mm

Spindle speed

6000-7500rpm

Take-up bobbin capacity

2×1 1.1kg

3×1 1.6kg or 2kg

Max.installed power

16.1kw

Overall Size

L×W×H=18.84M×1.10M×1.80M

1-Twisting Machine2-Rewinding Machine3-Thread & Yarns4-Knitting Machine


Textile industry related information

polyester industrial sewing yarn doubling twister machine


Production and marketing connection and asset operation of textile machinery industry


From the connection of production and marketing, the production and marketing rate of textile machinery industry from January to July 2021 was 96.97%, indicating that the product sales situation of this industry is good; The turnover rate of accounts receivable (operating income / net accounts receivable) is 3.10 times; The operation cycle of accounts receivable (210 days / accounts receivable turnover rate) is 67.82 days. The more accounts receivable turnover times or the fewer accounts receivable turnover days, the more smooth the channel to realize profits.


From the perspective of asset operation, the total asset turnover rate (operating revenue / total assets) of textile machinery industry is 0.52 times from January to July 2021, and the total asset operation cycle (210 days / total asset turnover rate) is 405.00 days. The more the total asset turnover times or the less the total asset turnover days, the higher the asset utilization efficiency.


The asset liability ratio of textile machinery industry was 57.98% from January to July 2021, indicating that the operation of financial policy is relatively stable; The return on net assets is 6.65%, indicating that the net assets operation efficiency of the industry is high.


3 changes in short-term debt repayment and liquidity of textile machinery industry


From the change of short-term solvency and liquidity, the current ratio (current assets / current liabilities) of textile machinery industry was 2.82 times from January to July 2021, compared with 2.69 times in the same period of last year. The current ratio is high, indicating that the enterprise has strong short-term solvency;


From the change of quick ratio ((current assets - Inventory) / current liabilities), the textile machinery industry is 2.10 times, compared with 2.00 times in the same period of last year. The quick ratio is high, indicating that the liquidity of current assets of enterprises is strong without considering inventory;


From the change of cash ratio ((monetary capital + short-term investment) / current liabilities), the textile machinery industry is 1.12 times, compared with 1.10 times in the same period of last year. The cash ratio is high, indicating that the short-term solvency of the enterprise is relatively guaranteed without considering inventory and accounts receivable. It can be seen that in the textile machinery industry, the short-term debt repayment and liquidity of enterprises are relatively good.


Hot Tags: polyester industrial sewing yarn doubling twister machine, China, manufacturers, suppliers, factory
