Sewing Thread Twister Machine

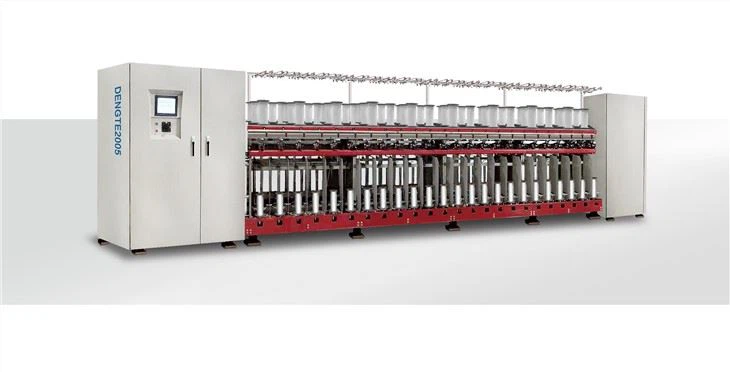

DT2005 Precision CNC Composite Twisting Machine sewing thread twister machine
The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement. If you need some kind of thread and yarns, not machine, you can also call us and tell us you requirements about thread or yarns and we will produce it in accordance with your demand.sewing thread twister machine
High Quality Yarn
Winch roller driven by single spindle, more accurate yarn twist, no external force extrusion, more rounded cross section;
Display of computer tracking on spindle speed, ensure accuracy of both initial and compound twist;
No oil imported materials of high speed steel making, less breakage;
NC constant tension winding, ensure constant thread speed, volume weight up to 1.6kg.
Ply Count Range:
2×1: 50D—500D
3×1: 50D—1000D
Products apply for sewing, embroidery, bonded thread.
polyester sewing yarn double twister machine
Spindle arrangement | 2×1 | 3×1 | |
Supply spindle NO. (1section) | 36 | 40 | 36 |
Ring spindle NO. (1section) | 18 | 20 | 12 |
Supply spindle NO. (10section) | 360 | 400 | 360 |
Ring spindle NO. (10section) | 180 | 200 | 120 |
Main Technical Date:
Twist range | 650 to 1250t/m, 3 to 32t/inch |
Twist direction | S or Z changeable |
Assemble ends | 2-4 |
Ring | Φ115mm Φ140mm |
Max.winding height | 330mm |
Spindle driving | Tangential bel driving |
Start mode | Stepless speed controlled by inverter |
Take-up spindle gauge | 2×1 162mm 180mm 3×1 270mm |
Spindle speed | 6000-7500rpm |
Take-up bobbin capacity | 2×1 1.1kg 3×1 1.6kg or 2kg |
Max.installed power | 16.1kw |
Overall Size | L×W×H=18.84M×1.10M×1.80M |
Textile industry related information
Retail repair and operation improvement. 1) The retail environment is restored. In the first half of 2021, the retail sales of clothing, shoes, hats and knitwear textiles of units above Designated Size in China increased by 33.7% / 2.7% year-on-year in 2020 / 2019. 2) The overall recovery and operation improvement of the industry. The performance of textile and garment companies showed a recovery upward trend in H1 in 2021. The revenue / performance of key brand clothing companies in 2021h1 were 37.876/4.631 billion yuan respectively, a year-on-year increase of + 27.8% / + 77.9% in 2020.
Sports shoes and clothing: boom up, pattern optimization. 1) The prosperity of sports shoes and clothing sector continued to rise. Domestic leading brands achieved rapid growth in H1 2021 under the conditions of multiple favorable factors such as the rapid recovery of the retail market, the increase in the demand for professional sporting goods and the enhancement of national self-confidence, and the performance of Q2 was better than Q1.
The revenue / performance of key sports shoes and clothing companies in 2021h1 increased by 45% / 129% respectively year-on-year, with excellent performance.
2) The prosperity of downstream terminals drives upstream orders, and the performance of sports manufacturing companies is better than that of the manufacturing sector as a whole.
The revenue / performance of key manufacturing companies in 2021h1 increased by 13.0% / 4.3% year-on-year in 2020 and 3.9% / 8.4% year-on-year in 2019.
