Yarn Twister Doubling Machine

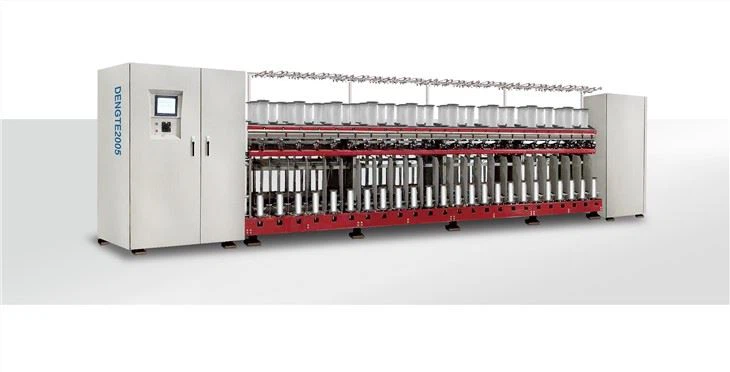

DT2005 Precision CNC Composite Twisting Machine yarn twister doubling machine
The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement. If you need some kind of thread and yarns, not machine, you can also call us and tell us you requirements about thread or yarns and we will produce it in accordance with your demand.yarn twister doubling machine
High Quality Yarn
Winch roller driven by single spindle, more accurate yarn twist, no external force extrusion, more rounded cross section;
Display of computer tracking on spindle speed, ensure accuracy of both initial and compound twist;
No oil imported materials of high speed steel making, less breakage;
NC constant tension winding, ensure constant thread speed, volume weight up to 1.6kg.
Ply Count Range:
2×1: 50D—500D
3×1: 50D—1000D
Products apply for sewing, embroidery, bonded thread.
yarn twister doubling machine
Spindle arrangement | 2×1 | 3×1 | |
Supply spindle NO. (1section) | 36 | 40 | 36 |
Ring spindle NO. (1section) | 18 | 20 | 12 |
Supply spindle NO. (10section) | 360 | 400 | 360 |
Ring spindle NO. (10section) | 180 | 200 | 120 |
Main Technical Date:
Twist range | 650 to 1250t/m, 3 to 32t/inch |
Twist direction | S or Z changeable |
Assemble ends | 2-4 |
Ring | Φ115mm Φ140mm |
Max.winding height | 330mm |
Spindle driving | Tangential bel driving |
Start mode | Stepless speed controlled by inverter |
Take-up spindle gauge | 2×1 162mm 180mm 3×1 270mm |
Spindle speed | 6000-7500rpm |
Take-up bobbin capacity | 2×1 1.1kg 3×1 1.6kg or 2kg |
Max.installed power | 16.1kw |
Overall Size | L×W×H=18.84M×1.10M×1.80M |




Textile industry related information
yarn twister doubling machine
Recently, the national development and Reform Commission issued the "14th five year plan" for the development of circular economy (hereinafter referred to as the "plan")《 The plan points out that resource recycling has become an important way to ensure China's resource security“ During the 14th Five Year Plan period, we will vigorously develop the circular economy, promote the economical and intensive utilization of resources, and build a resource recycling industrial system and a recycling system of waste materials.
"The plan will provide development space for the waste textile (hereinafter referred to as waste textile) reuse industry." Yang Yinghong, executive director of Shanghai Yuanyuan Industrial Co., Ltd., said, "generally, the eliminated and discarded textiles are divided into two categories: old textiles and waste textiles. Old textiles are clothing and home textile products that are eliminated after living consumption. They can maintain their original form and prolong their service life. The waste textile can only be used as raw materials, but due to various restrictive factors, its utilization rate is less than 20%. Most of them are mainly treated by incineration and landfill, causing great pollution to the environment. Therefore, improving the recycling of waste textile has become the focus of the industry during the 14th Five Year Plan period. "
The carbon dioxide emission of spinning waste can be reduced by 250000 tons
According to the data provided by China Textile Industry Federation, China's textile industry consumed 49.7 million tons of textile raw materials in 2016, accounting for 48% of the total global textile raw material consumption, 52% in 2017 and about 55% in 2018, ranking first in the world.
