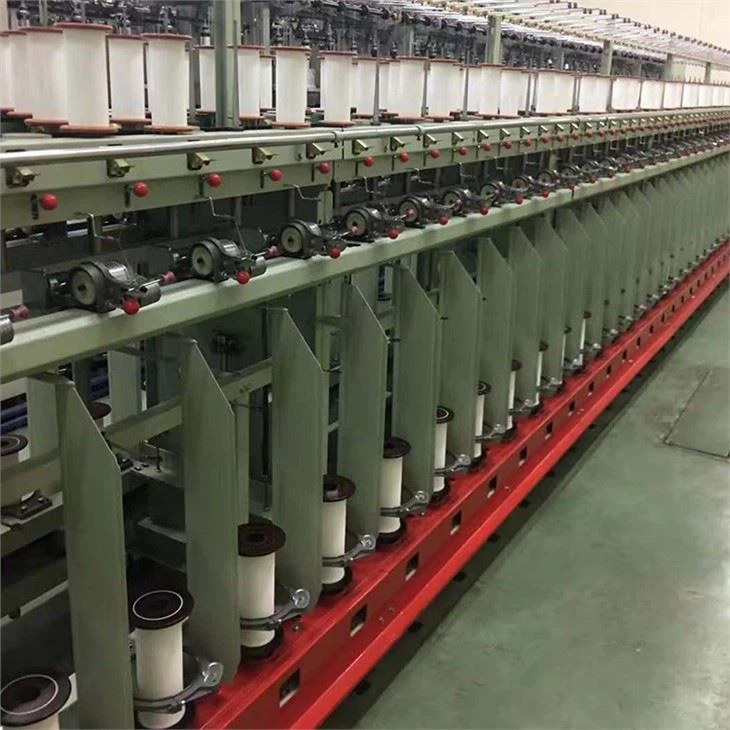

Industrial Filament Sewing Yarn Ring Twister Machine
video

Industrial Filament Sewing Yarn Ring Twister Machine

The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement.
Send Inquiry
Chat Now
Product Introduction

DT2005 Precision CNC Composite Twisting Machine

industrial filament sewing yarn ring twister machine


The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement. If you need some kind of thread and yarns, not machine, you can also call us and tell us you requirements about thread or yarns and we will produce it in accordance with your demand.industrial filament sewing yarn ring twister machine

High Quality Yarn

Winch roller driven by single spindle, more accurate yarn twist, no external force extrusion, more rounded cross section;

Display of computer tracking on spindle speed, ensure accuracy of both initial and compound twist;

No oil imported materials of high speed steel making, less breakage;

NC constant tension winding, ensure constant thread speed, volume weight up to 1.6kg.


Ply Count Range:

2×1: 50D—500D

3×1: 50D—1000D

Products apply for sewing, embroidery, bonded thread.

industrial filament sewing yarn ring twister machine

Spindle arrangement

2×1

3×1

Supply spindle NO. (1section)

36

40

36

Ring spindle NO. (1section)

18

20

12

Supply spindle NO. (10section)

360

400

360

Ring spindle NO. (10section)

180

200

120


Main Technical Date:

Twist range

650 to 1250t/m, 3 to 32t/inch

Twist direction

S or Z changeable

Assemble ends

2-4

Ring

Φ115mm Φ140mm

Max.winding height

330mm

Spindle driving

Tangential bel driving

Start mode

Stepless speed controlled by inverter

Take-up spindle gauge

2×1 162mm 180mm

3×1 270mm

Spindle speed

6000-7500rpm

Take-up bobbin capacity

2×1 1.1kg

3×1 1.6kg or 2kg

Max.installed power

16.1kw

Overall Size

L×W×H=18.84M×1.10M×1.80M

1-Twisting Machine2-Rewinding Machine3-Thread & Yarns4-Knitting Machine


Textile industry related information

industrial filament sewing yarn ring twister machine


The integration of textile industrialization and industrialization has entered a new stage of digital transformation

The integration of informatization and industrialization is the intersection of the two historical processes of informatization and industrialization, the process of deepening the application of information technology in the manufacturing field, and an important way to realize the continuous transformation of productivity, production mode and production relations.

With the accelerated innovation, rapid iteration and group breakthrough of information technology, the integration of informatization and industrialization has moved from the initial construction, to the deep integration of manufacturing industry and the Internet, and then to the integrated development of new generation information technology and manufacturing industry, "from point to line, from line and area" to a wider range, wider fields and deeper level, It has gradually entered a new stage with the digital transformation of manufacturing industry as the core feature and important mode.

In 2020, the government work report proposed to promote the upgrading of manufacturing industry and the development of emerging industries, focusing on "developing industrial Internet and promoting intelligent manufacturing" and "comprehensively promoting" Internet + "to create new advantages of digital economy". In the critical period of normalized epidemic prevention and control and the upgrading of China's manufacturing industry, promoting the integration of industrialization and industrialization with the digital transformation of manufacturing industry, and developing and expanding the industrial digital economy is not only an urgent need to optimize the efficiency of manufacturing resource allocation and improve the total factor productivity of manufacturing industry, but also the only way to accelerate the supply side structural reform of manufacturing industry and strive to achieve high-quality development of manufacturing industry.
