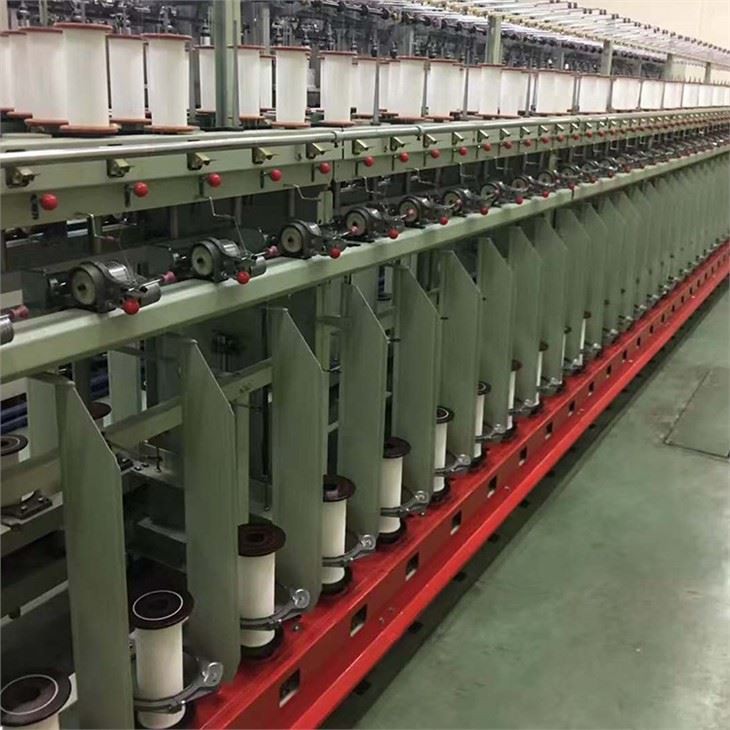

Polyester Filament Sewing Yarn Double Twister Machine
video

Polyester Filament Sewing Yarn Double Twister Machine

The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement.
Send Inquiry
Chat Now
Product Introduction

DT2005 Precision CNC Composite Twisting Machine

polyester filament sewing yarn double twister machine


The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients’ requirement. If you need some kind of thread and yarns, not machine, you can also call us and tell us you requirements about thread or yarns and we will produce it in accordance with your demand.polyester filament sewing yarn ring twister machine

High Quality Yarn

Winch roller driven by single spindle, more accurate yarn twist, no external force extrusion, more rounded cross section;

Display of computer tracking on spindle speed, ensure accuracy of both initial and compound twist;

No oil imported materials of high speed steel making, less breakage;

NC constant tension winding, ensure constant thread speed, volume weight up to 1.6kg.


Ply Count Range:

2×1: 50D—500D

3×1: 50D—1000D

Products apply for sewing, embroidery, bonded thread.

polyester filament sewing yarn double twister machine

Spindle arrangement

2×1

3×1

Supply spindle NO. (1section)

36

40

36

Ring spindle NO. (1section)

18

20

12

Supply spindle NO. (10section)

360

400

360

Ring spindle NO. (10section)

180

200

120


Main Technical Date:

Twist range

650 to 1250t/m, 3 to 32t/inch

Twist direction

S or Z changeable

Assemble ends

2-4

Ring

Φ115mm Φ140mm

Max.winding height

330mm

Spindle driving

Tangential bel driving

Start mode

Stepless speed controlled by inverter

Take-up spindle gauge

2×1 162mm 180mm

3×1 270mm

Spindle speed

6000-7500rpm

Take-up bobbin capacity

2×1 1.1kg

3×1 1.6kg or 2kg

Max.installed power

16.1kw

Overall Size

L×W×H=18.84M×1.10M×1.80M

1-Twisting Machine2-Rewinding Machine3-Thread & Yarns4-Knitting Machine


Textile industry related information

polyester filament sewing yarn double twister machine


The reason behind the honor blessing is innovation. Only innovation can stimulate vitality.

The innovation ability of Anhui Textile industry has been further improved, and major breakthroughs have been made in the fields of high-functional fiber materials, high-end textile fabrics and creative design. A number of high-tech products such as Fengyuan polylactic acid fiber and Jixiang Sanbao "imitation goose down" flocs have filled the development gap of the industry.

Moreover, the intelligent manufacturing level of Anhui Textile industry has been significantly improved. Large scale personalized customization and service-oriented manufacturing such as Hongai clothing and Alibaba Xinxi intelligent factory have become new highlights of the industry development. Huamao cotton textile intelligent factory has been rated as the intelligent manufacturing pilot demonstration project of the Ministry of industry and information technology and has become an industry model.

Remarkable results

The industrial system is more perfect and the industrial clusters are stronger

The number has no temperature, but it is an attitude to prove strength.

During the 13th five year plan, Anhui Textile industry actively built an industrial system and expanded the scale of industrial clusters by accelerating the transformation of industrial intelligent manufacturing, accelerating the cultivation of independent brand construction, deeply implementing the "three products" strategy, actively building various exhibition and marketing platforms, and continuing the CCTV publicity of "high-quality Anhui". Specifically realized as follows:

The industrial system is more perfect. Relying on the "double cycle" development, the textile industry of our province has formed a complete modern manufacturing industry system, has strong independent supporting capacity, has good competitiveness in both international and domestic markets, and has balanced internal and external development. The industrial scope covers textile, clothing, chemical fiber and other industries. The industrial categories are relatively complete, the industrial system is more coordinated and perfect, and the industrial chain is relatively complete.

Industrial clusters are beginning to take shape. Since the 13th five year plan, focusing on the development of textile industry chain, the whole industry has formed a number of professional towns of textile and garment industry clusters, such as Wuhu Suncun, Suzhou Zhuxianzhuang, Lu'an Dingji, Bengbu Guzhen, Anqing paradise Town, etc. Yuexi, Wangjiang, Susong and Wuhu Suncun towns were respectively awarded the titles of "China famous Handmade Home Textile City", "China emerging textile industry base" and "China famous export garment manufacturing town" by China Textile Industry Association.

Innovation ability has reached a new level. During the 13th Five Year Plan period, the innovation achievements of the textile industry in our province were relatively fruitful, the independent innovation ability of the industrial chain was continuously improved, and major breakthroughs were made in the fields of high-functional fiber materials, high-end textile fabrics and creative design. A number of high-tech products such as Fengyuan polylactic acid fiber and Jixiang Sanbao "imitation goose down" flocs make up for the gap in the development of the industry; "Hongaiyun fashion creative design platform" has been determined as a pilot platform for textile and garment creative design by the Ministry of industry and information technology, and the leading role of key enterprises is obvious.

Scientific and technological empowerment accelerated. Positive progress has been made in the construction of intelligent factories, and the level of intelligent manufacturing has been significantly improved. Large scale personalized customization and service-oriented manufacturing such as Hongai clothing and Alibaba Xinxi intelligent factory have become new highlights in the development of the industry. Huamao cotton textile intelligent factory has been rated as the pilot demonstration project of intelligent manufacturing of the Ministry of industry and information technology, and has become an industry model.
